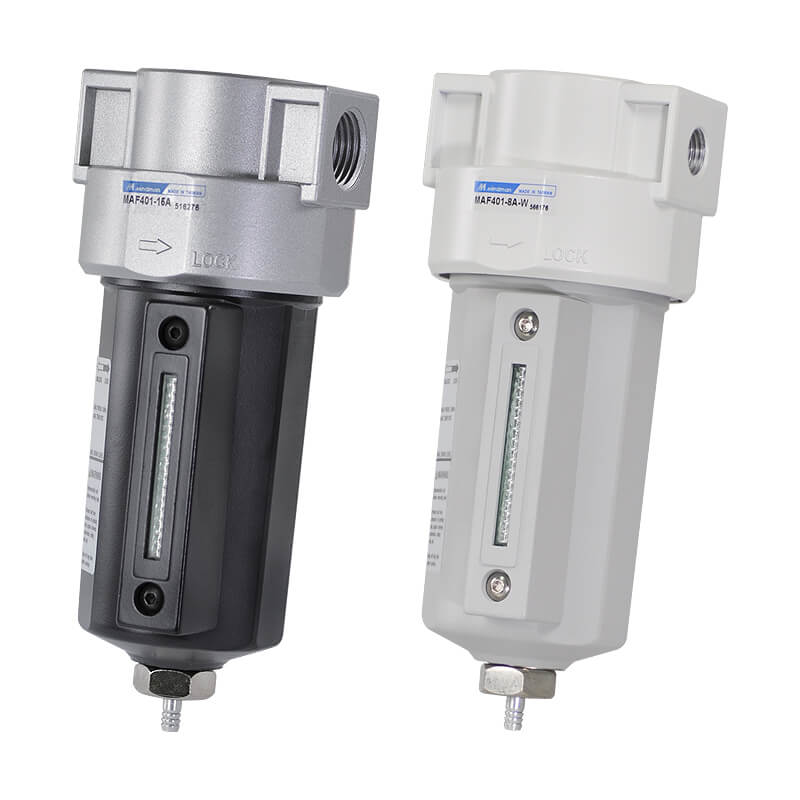

MAF401 series
- MAF401 series
- Port size: 1/4, 3/8,1/2, Operating pressure range:0.05~1.5 MPa, Proof pressure: 2 MPa.
- Specification
Bore No. 8A, 10A, 15A Port size 1/4, 3/8, 1/2 Medium Air Operating pressure range (※1.2) 0.05~1.5 MPa Proof pressure 2 MPa Ambient temperature －5~＋60℃ (No freezing) Filter element Standard:40μm Option:5μm Drain capacity 70 cm3 Max. flow rate (※3) l/min.(ANR) 1300, 2000, 2500 Weight 480 g Remark ※1.Standard unit contains semi-auto-drain function when
operating pressure below 0.05 MPa.
※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
※3. Flow is at pressure P=0.7 MPa with pressure drop △P=0.03 MPa.
