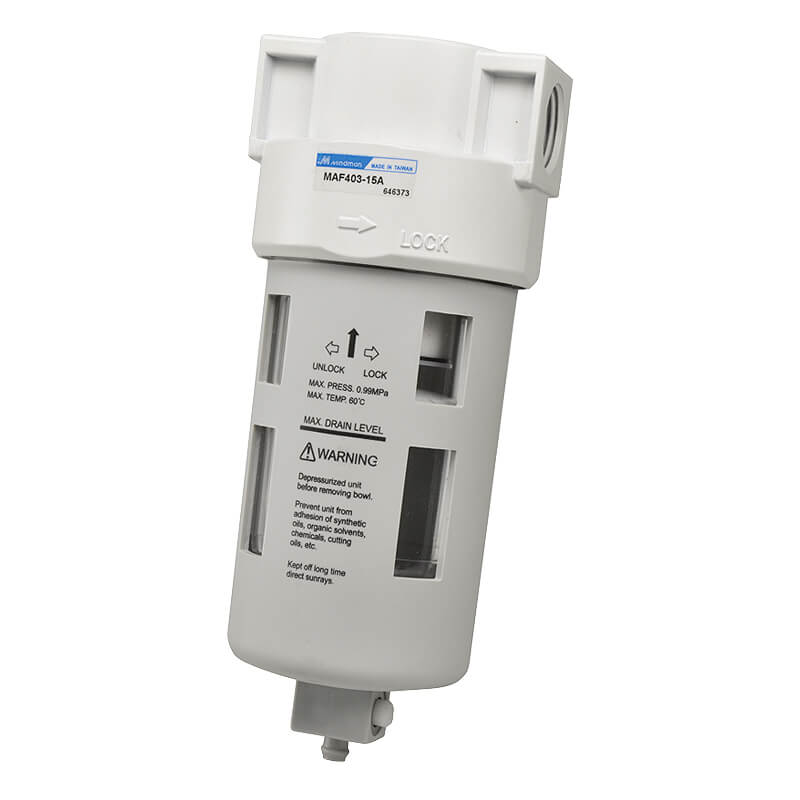

MAF403 A / D / M series

MAF403 A / D / M series
Port size: 1/4, 3/8, 1/2, Operating pressure range: 0.05~1.5 MPa, Proof pressure: 1.5 MPa.

Specification

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating perssure range (※)	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	5 μm, 0.3 μm, 0.01 μm
Drain capacity	75 cm³
Weight	345 g
Remark	※1. Standard unit contains semi-auto-drain function when operating pressure ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa.
