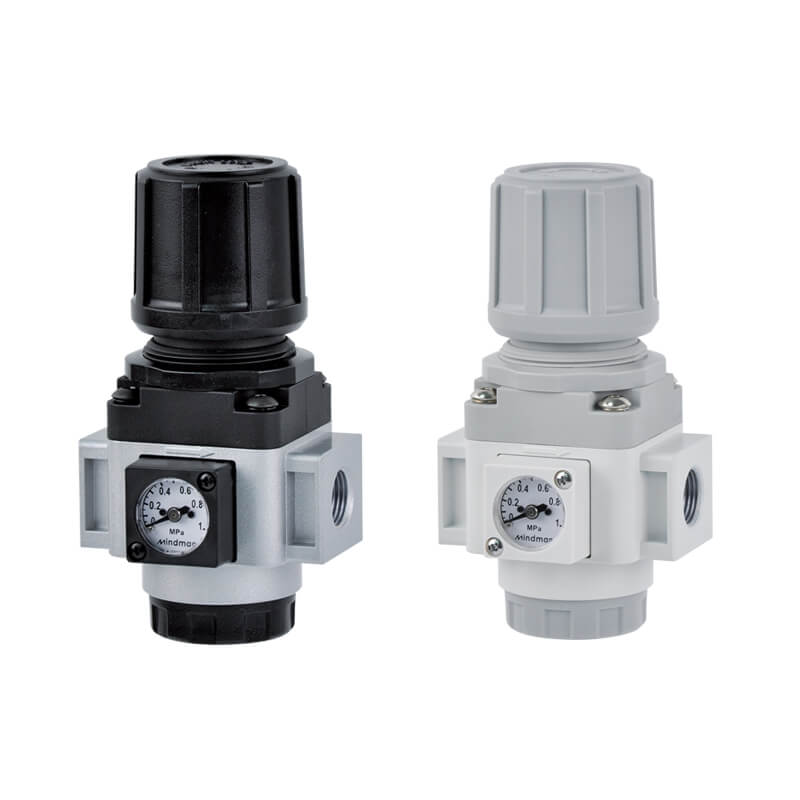

MAR401 series

MAR401 series
Port size: 1/4, 3/8, 1/2, Max. operating pressure: 1.5 MPa, Proof pressure: 2 MPa.

Specification

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	Standard type: 0.1~0.85 MPa , High pressure type: 0.1~1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Attachment	Pressure gauge (PG-20)
Weight	450 g
