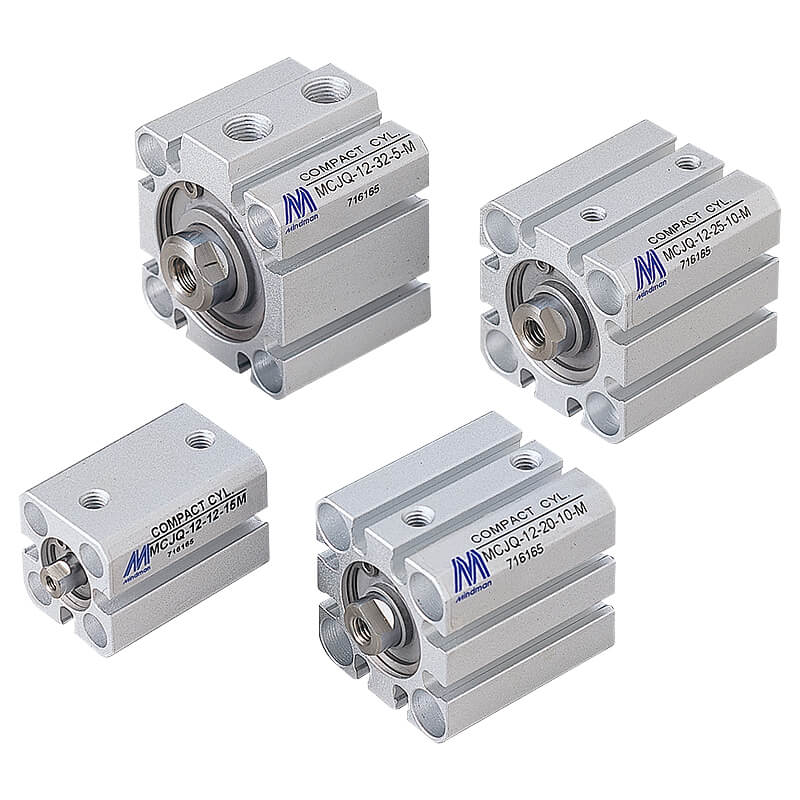

MCJQ series
- MCJQ series
- Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), Ultra-compact, light weight, space-saving type.
- Specification
Acting type Double acting / Single acting Tube I.D. (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Port size M5×0.8, Rc1/8, Rc1/4, Rc3/8 Medium Air Operating pressure range 0.05~1 MPa Proof pressure 1.5 MPa Ambient temperature －5℃~＋60℃ (No freezing) Available speed range 50~500 mm/sec Sensor switch RDE, RDE1E (ø12, 16) RCE, RCE1 (ø20~100mm)
RDEP (ø12, 16, 25, 40, 50, 63, 80, 100 mm)
