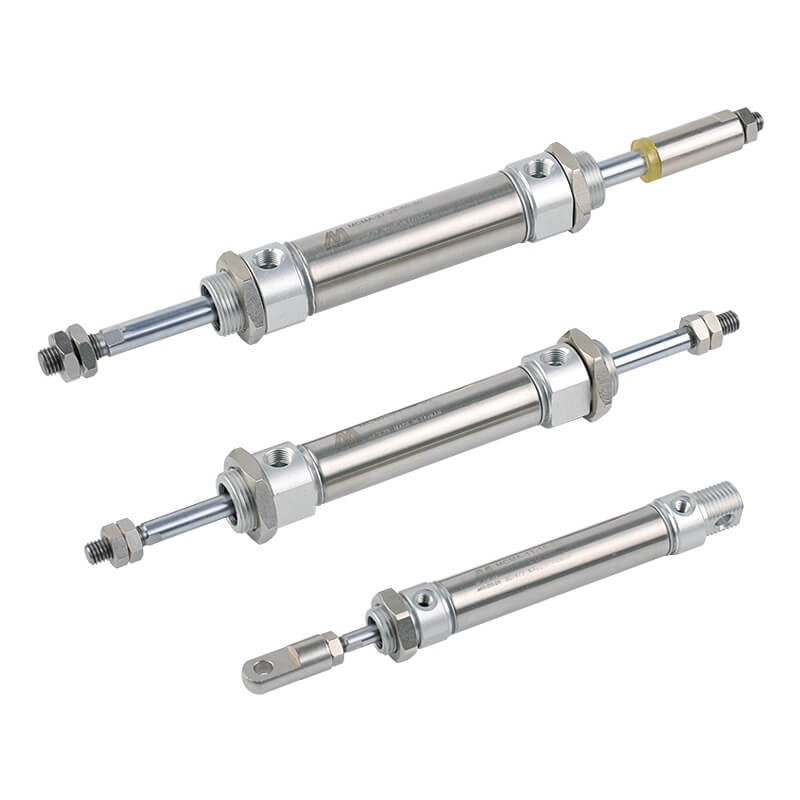

MCMA series
- MCMA series
- Tube I.D. φ 16, 20, 25, 32, 40 (mm). Designs of oil-filled alloy. special housing and bushing provide the needed self-lubrication of piston rod. Stainless cylinder tubes resist corrosion and abrasion.
Tube I.D. (mm) 16, 20, 25, 32, 40 Port size M5×0.8, Rc1/8 Medium Air Max. operating pressure 0.7 MPa Min. operating pressure Double:0.06 MPa, Single:0.15 MPa Proof pressure 1 MPa Ambient temperature －5~＋60℃ (No freezing) Lubricator Not required Available speed range 50~750 mm/sec Max. allowable kinetic energy Cushion pad 0.16~1.2J, Adjustable cushion 0.32~2.35J Sensor switch RCM Sensor switch band BM16~BM40
