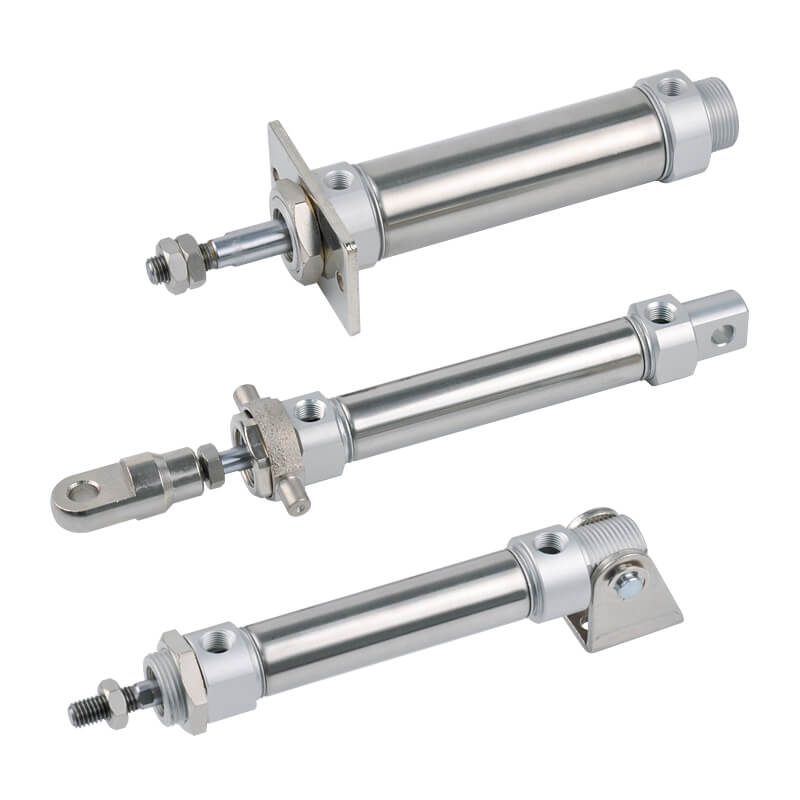

MCMB series

MCMB series
Tube I.D. φ20, 25, 32, 40 (mm). Designs of oil-filled alloy. special housing and bushing provide the needed self-lubrication of piston rod. Stainless cylinder tubes resist corrosion and abrasion.

Specification

Tube I.D. (mm)	20, 25, 32, 40
Port size	Rc1/8, Rc1/4
Medium	Air
Max. operating pressure	1 MPa
Min. operating pressure	(Double acting) 0.05 MPa, (Single acting) Extended: 0.23, Returned: 0.18 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Lubricator	Not required
Available speed range	50~750 mm/sec
Max. allowable kinetic energy	Cushion pad 0.27~1.2J, Adjustable cushion 0.54~2.35J
Sensor switch	RCM
Sensor switch band	BM20~BM40
