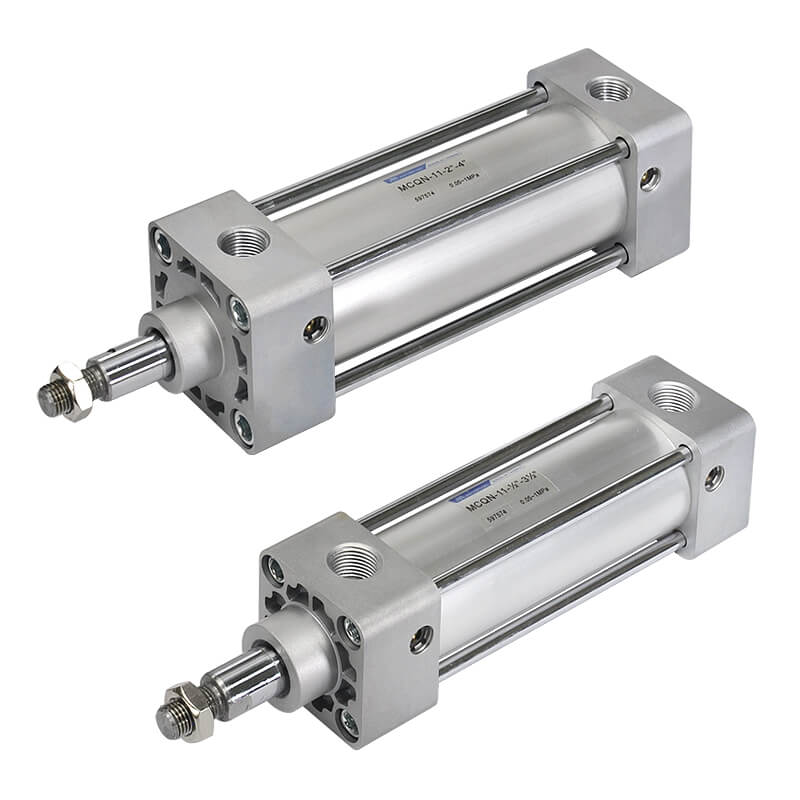

MCQN series
- MCQN series
- Tube I.D. 1 1/2”~4” (inch). Designs of oil-filled alloy.special housing and bushing provide the needed self-lubrication of piston rod. Hard anodized aluminum cylinder tubes resist corrosion and abrasion.
Tube I.D. (inch) 1-1/2”, 2″, 2-1/2″, 3-1/4″, 4” Port size NPT3/8, NPT1/2 Medium Air Max. operating pressure 1 MPa Min. operating pressure 0.05 MPa Proof pressure 1.5 MPa Ambient temperature －5~＋60℃ (No freezing) Available speed range 50~500 mm/sec Sensor switch RCA Sensor switch holder HV1, HV2, HV3
