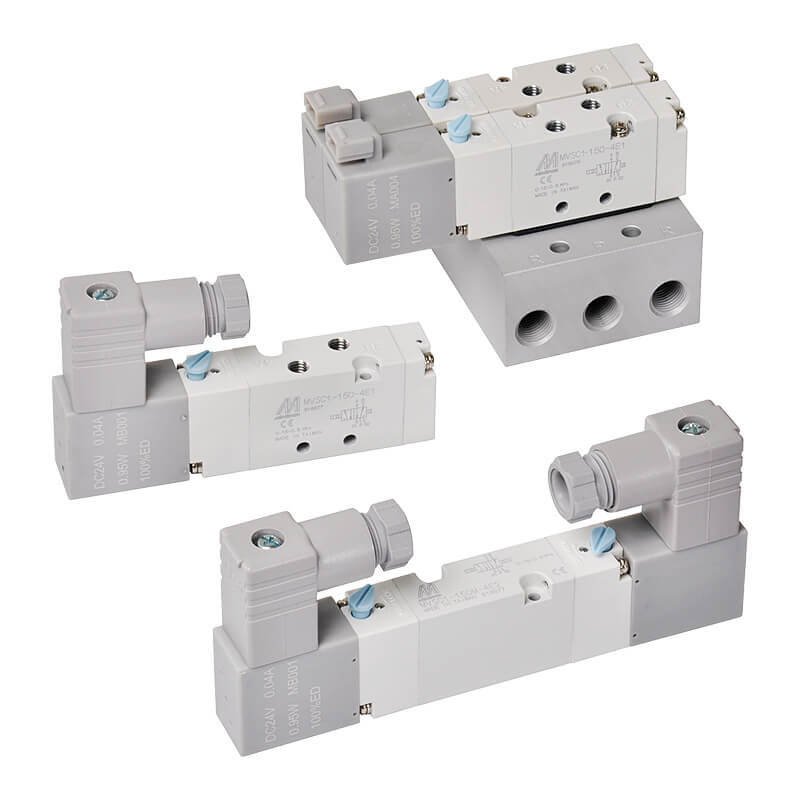

MVSC1-150 series
- MVSC1-150 series
- Body width: 15 mm, Port size: M5 x 0.8, Operating pressure range: 0.15~0.8 MPa, Proof pressure: 1 MPa, Flow: 163 l/min.
Body width 15 mm Port size M5×0.8 No. of port / position 5 / 2 Medium Air Operating pressure range 0.15~0.8 MPa Proof pressure 1 MPa Flow 163 l/min Effective orifice 3.8 mm2 Response time DC < 23 ms, AC < 35 ms Ambient temperature －5~＋50℃ (No freezing) Voltage AC110V, 220V (50/60)Hz, DC12/24V Power consumption AC=1.12VA , DC=0.95W Available voltage range ±10% Insulation class F class Weight 73 g, 108 g
