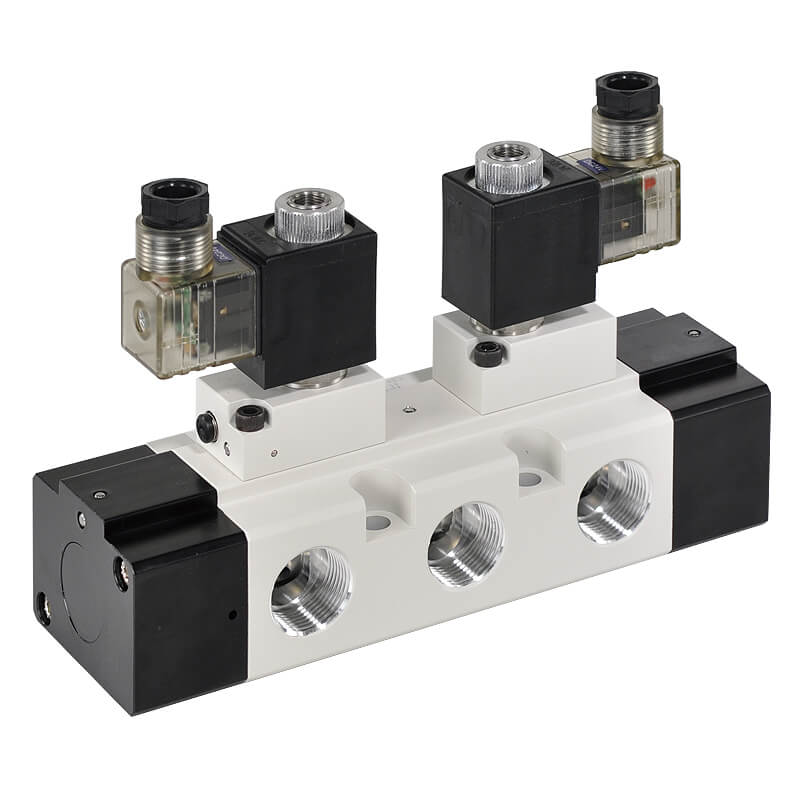

MVSE-600 series
- MVSE-600 series
- Body width: 60 mm, Port size: 3/4, 1, Operating pressure range: 0.2~0.7 MPa, Proof pressure: 1 MPa, Flow: 5227, 5440 l/min (25A).
Body width 60 mm Bore No. 20A, 25A Port size 3/4, 1 No. of port 5 No. of position 2 Medium Air Operating pressure range 0.2~0.7 MPa Proof pressure 1 MPa Flow 5227 l/min(20A), 5440 l/min(25A) Effective orifice 20A: 96 mm2、25A: 100 mm2 Response time 80 ms Ambient temperature －5~＋50℃ (No freezing) Voltage AC110V, AC220V (50/60)Hz, DC24V Power consumption AC=13/11VA, DC=10W Available voltage range ±10% Insulation class H class Weight 1817g, 2102g
