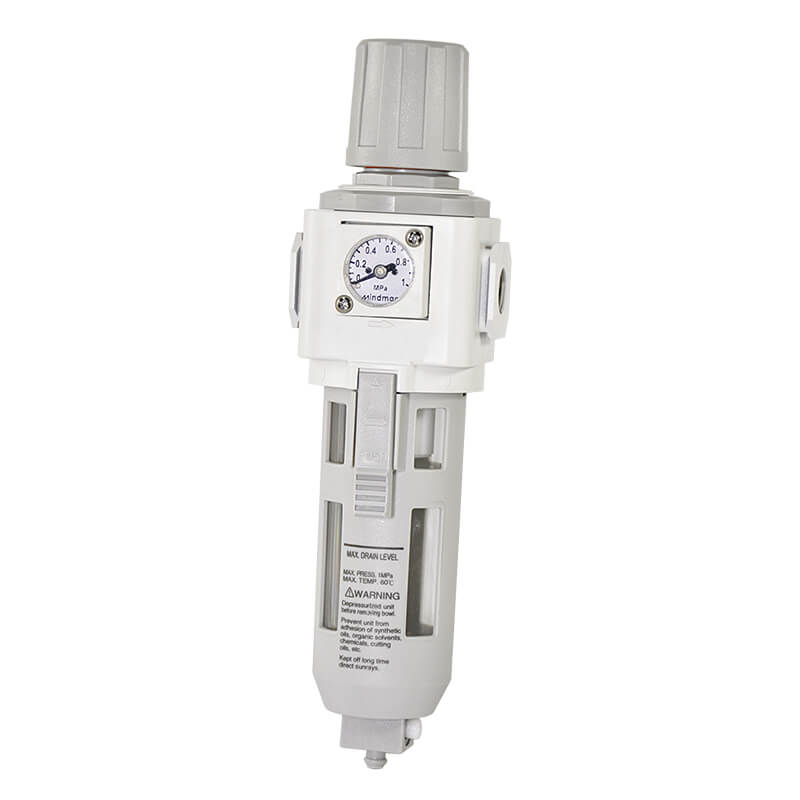

MAFR302 series
- MAFR302 series
- Port size: 1/4, 3/8, 1/2,Operating pressure range: 0.05~1 MPa, Proof pressure: 1.5 MPa.
- Specification
Bore No. 8A, 10A, 15A Port size 1/4, 3/8, 1/2 Medium Air Operating pressure range (※) 0.05~1 MPa Proof pressure 1.5 MPa Regulated pressure range 0.05~0.85 MPa Ambient temperature －5~＋60℃ (no freezing) Filter element Standard: 5μm Option: 40μm Drain capacity 35 cm3 Attachment Pressure gauge (PG-20), bracket Weight 490 g Remark ※1.Standard Unit contains semi-auto-drain function when
operating pressure below 0.05 MPa.
※2.Choose auto-drain FMRF300,the pressure rang is 0.15~1 MPa.
