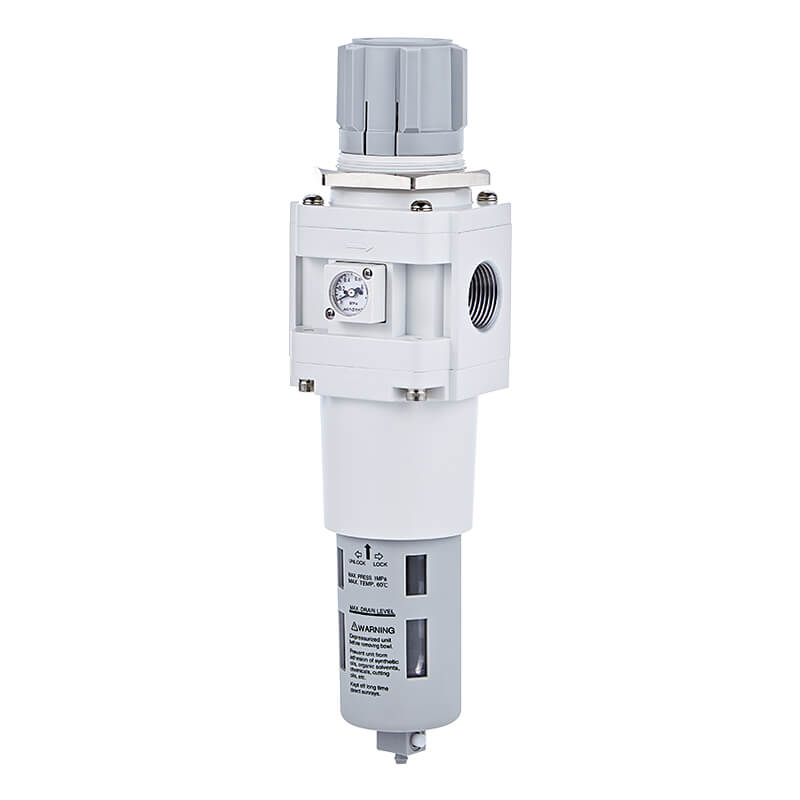

MAFR501 series

MAFR501 series
Port size: 3/4, 1, Operating pressure range :0.05~1.5 MPa, Proof pressure: 2 MPa, PC, Nylon, Metal bowl.

Specification

Bore No.	20A, 25A
Port size	3/4, 1
Medium	Air
Operating pressure range (※)	Nylon bowl, PC bowl: 0.05~1 MPa Metal bowl: 0.05~1.5 MPa
Regulated pressure range	Nylon bowl, PC bowl: 1.5 MPa Metal bowl: 2 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	40 μm
Drain capacity	PC, Nylon bowl: 75 cm³ / Metal bowl: 70 cm³
Attachment	Pressure gauge, bracket
Weight	PC,Nylon bowl: 1940g / Metal bowl: 2060g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
