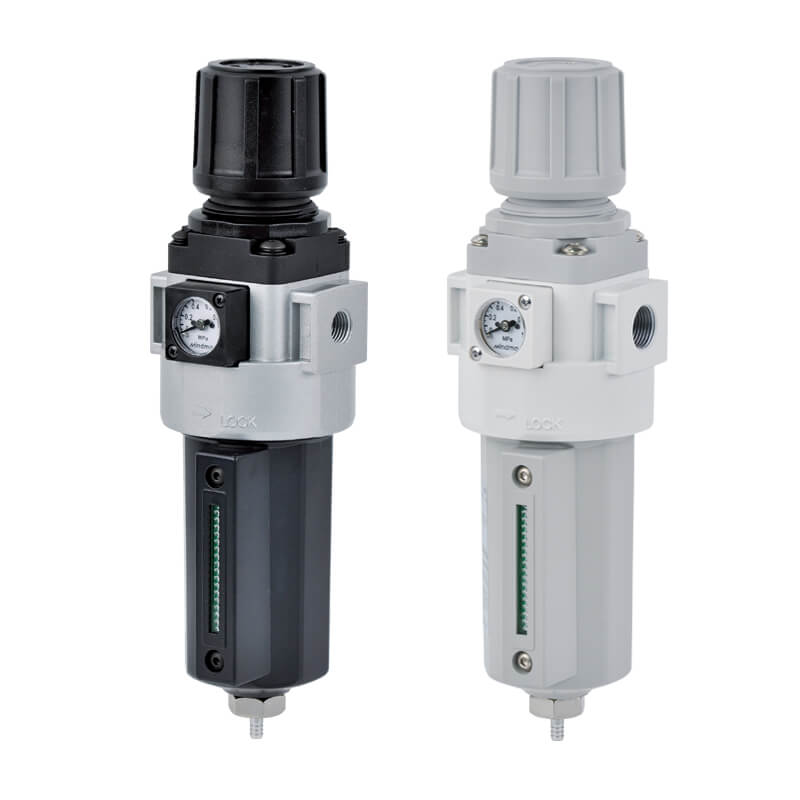

MAFR401 series

MAFR401 series
Port size: 1/4, 3/8, 1/2, Operating pressure range: 0.05~1.5 MPa, Proof pressure: 2 MPa.

Specification

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※)	0.05~1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	Standard type: 0.1~0.85 MPa , High pressure type: 0.1~1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	Standard:40μm Option:5μm
Drain capacity	70 cm³
Attachment	Pressure gauge (PG-20)
Weight	800 g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
