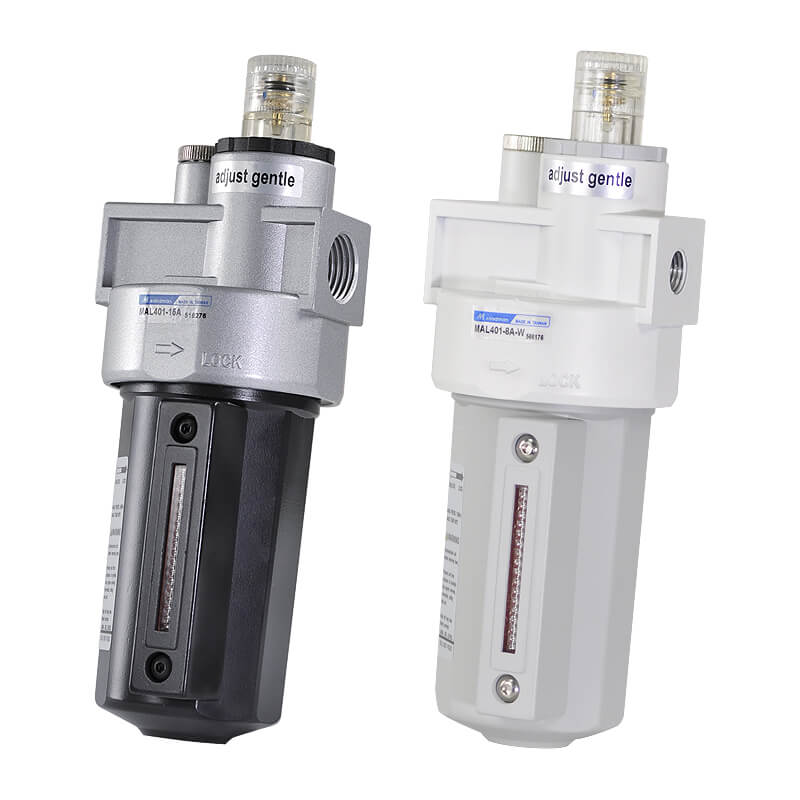

MAL401 series

MAL401 series
Port size: 1/4, 3/8, 1/2, Max. operating pressure: 1.5 MPa, Proof pressure: 2 MPa.

Specification

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1.5 MPa
Proof pressure	2 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Lubricating oil capacity	200c.c
Min. flow for oil drip	8A:30 l/min , 10A:65 l/min , 15A:80 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Max. flow rate (※) l/min	8A:1200 l/min , 10A:2000 l/min , 15A:2100 l/min
Weight	545 g
Remark	Flow is at pressure P=0.7 MPa with purssure drop △P=0.03 MPa.(ANR)
