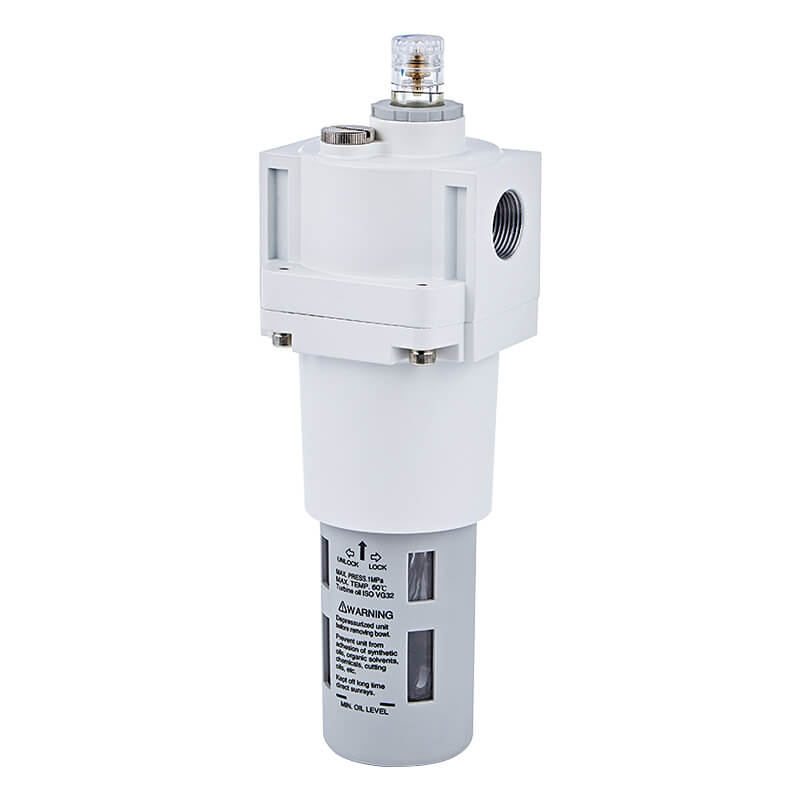

MAL501 series

MAL501 series
Port size: 3/4, 1, Max. operating pressure: 1.5 MPa,Proof pressure: 2 MPa, PC, Nylon, Metal bowl.

Specification

Bore No.	20A, 25A
Port size	3/4, 1
Medium	Air
Max. operating pressure	PC, Nylon bowl: 1 MPa / Metal bowl: 1.5 MPa
Proof pressure	PC, Nylon bowl:1.5 MPa / Metal bowl: 2 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Lubricating oil capacity	200 c.c
Min. flow for oil drip	25 l/min, 33 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Weight	PC,Nylon bowl: 1260g / Metal bowl: 1380g
