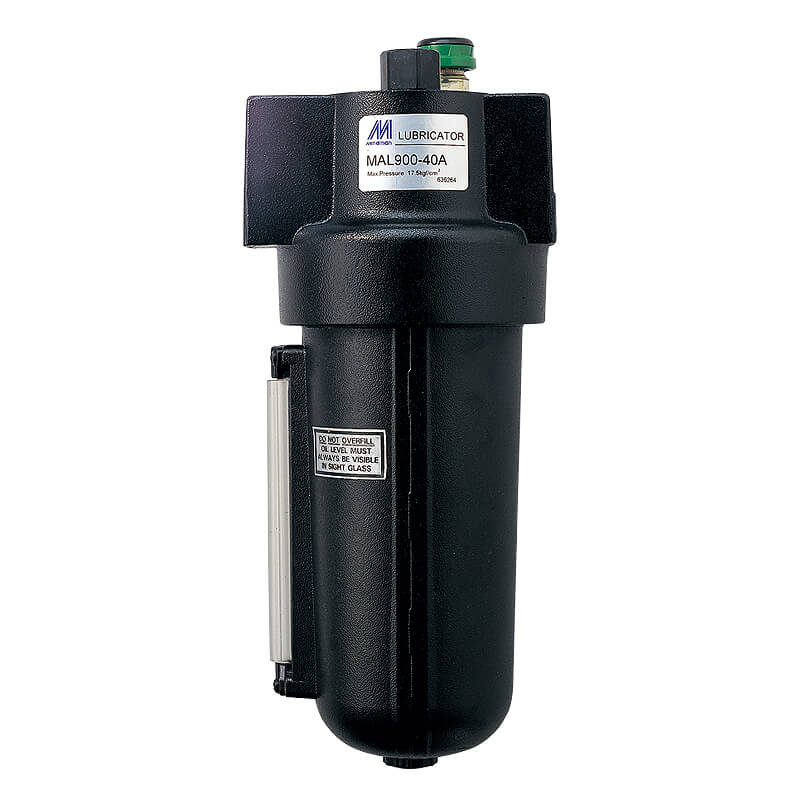

MAL900 series

MAL900 series
MAL900 is useful to lubricate air tools, cylinders, valves, air motors and other air driven devices.

Specification

Bore No.	40A
Port size	1 1/2
Medium	Air
Max. operating pressure	1.75 MPa
Ambient temperature	0~＋80℃ (No freezing)
Lubricating oil capacity	1000 c.c
Min. flow for oil drip	204 l /min
Recommended lubricating oil	Turbine oil ISO-VG32
Standard nominal flow rate(※)	12000 l/min
Weight	1766 g
Remark	Flow is at pressure P=0.6 MPa with purssure drop△P=0.1 MPa.
