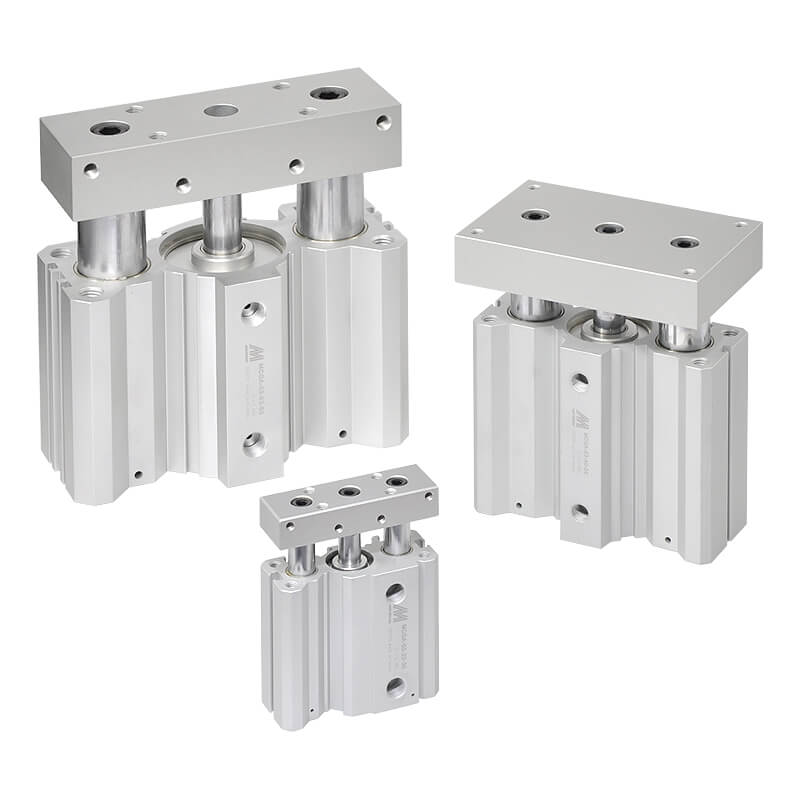

MCGA series
- MCGA series
- Tube I.D. φ20, 32, 40, 50, 63, 80 (mm). Strong cylinder suitable for heavy load,for stopping work carriers of various sizes at a fixed position, and for stacking many work carriers, etc.
- Specification
Acting type Double acting Tube I.D. (mm) 20, 32, 40, 50, 63, 80 Port size Rc1/8, Rc1/4, Rc3/8 Medium Air Operating pressure range 0.1~1 MPa Proof pressure 1.5 MPa Ambient temperature －5~＋60℃ (No freezing) Lubrication Not required Available speed range 50~500mm/sec Cushion With rubber cushion pad Sensor switch RCB
