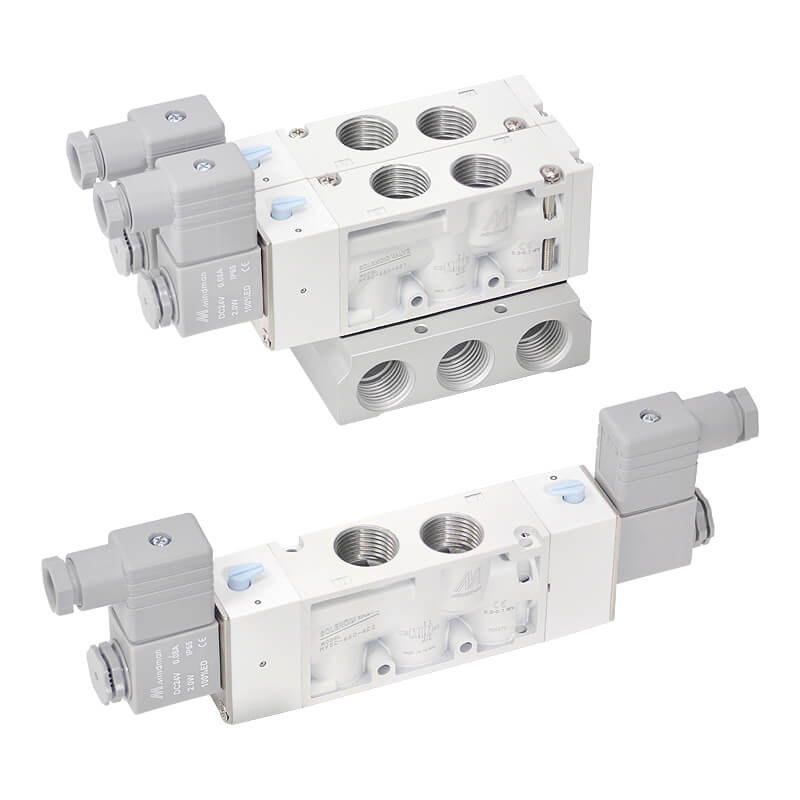

MVSC-460

Bore No. 15A, Port size: G1/2, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.

Bore No.	15A
Port size	1/2
No. of port	3, 5
No. of position	2, 3
Medium	Air
Operating pressure range	0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressue (LP)	0~0.8 MPa
Pilot pressure range (LP)	(0.34×P(*1)+0.1)~0.5 MPa
Proof pressure	1 MPa
Effective orifice	60 mm², 50 mm², 30 mm²
Reponse time	50 ms
Ambient temperature	－5~＋50℃ (No freezing)
Voltage	AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption-Standard	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Power consumption-Power saving	DC24V=Start: 2W(*2) Power saving: 0.5W
Available voltage range	±10%
Insulation class	F class
Weight	325g, 455g, 339g, 464g, 525g
Remark	1. P: Operating pressure 2. Power saving covert time 100ms.
