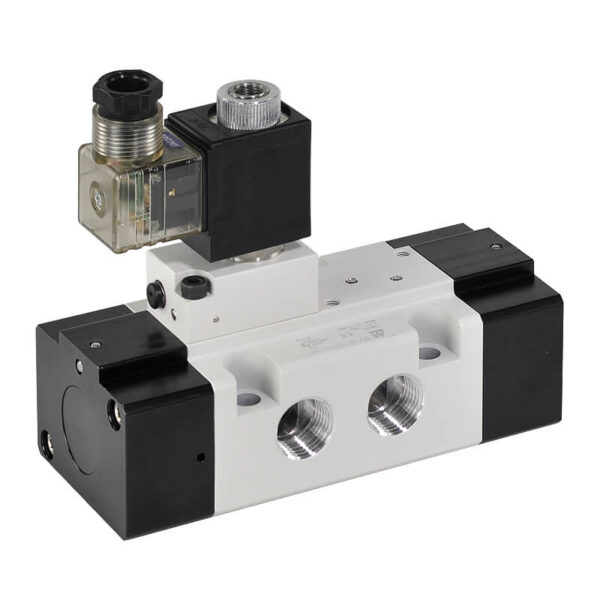

MVSE-510 series
- MVSE-510 series
- Body width: 51 mm, Port size: 1/2, Operating pressure range: 0.2~0.7 MPa, Proof pressure: 1 MPa, Flow: 3539 l/min.
Body width 51 mm Bore No. 15A Port size 1/2 No. of port 5 No. of position 2 Medium Air Operating pressure range 0.2~0.7 MPa Proof pressure 1 MPa Flow 3539 l/min Effective orifice 65 mm2 Response time 60 ms Ambient temperature －5~＋50℃ (No freezing) Voltage AC110V, AC220V (50/60)Hz, DC24V Power consumption AC=13/11VA, DC=10W Available voltage range ±10% Insulation class H class Weight 1523g~1808g
