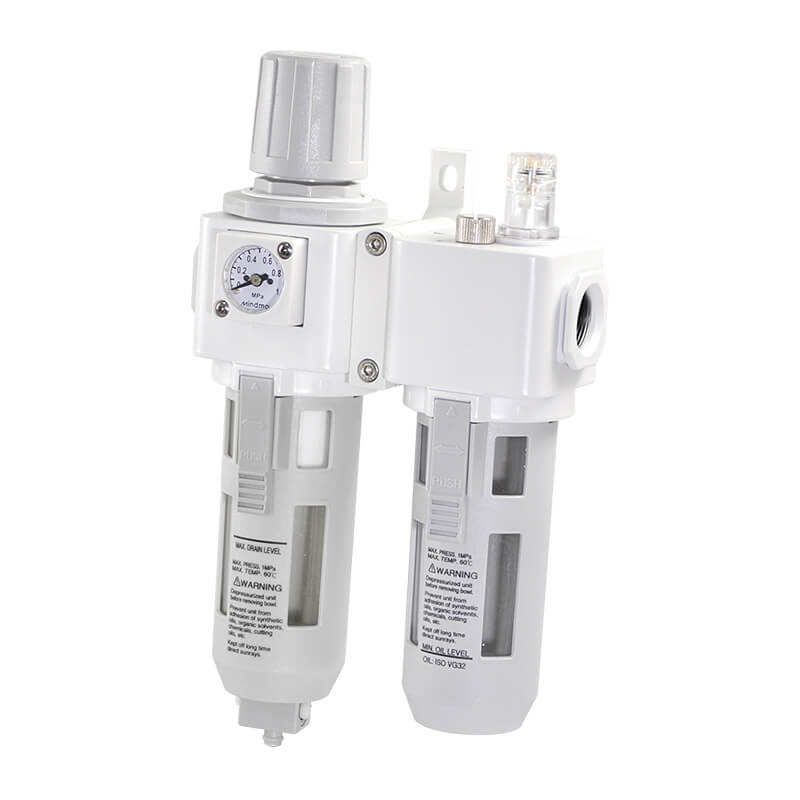

| Components |
MAFR302, MAL302 |
| Bore No. |
8A, 10A, 15A |
| Port size |
1/4, 3/8, 1/2 |
| Medium |
Air |
| Operating pressure range (※) |
0.05~1 MPa |
| Proof pressure |
1.5 MPa |
| Regulated pressure range |
0.05~0.85 MPa |
| Ambient temperature |
－5~＋60℃ (no freezing) |
| Filter element |
Standard: 5μm Option: 40μm |
| Lubricating oil capacity |
65c.c |
| Min. flow for oil drip |
8A: 50 l/min、10A,15A: 60 l/min |
| Recommended lubricating oil |
Turbine oil ISO-VG32 |
| Attachment |
Pressure gauge (PG-20), T-type bracket |
| Weight |
845 g |
| Remark |
※1.Standard unit contains semi-auto-drain function when
operating pressure below 0.05 MPa.
※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa. |
