| Components |

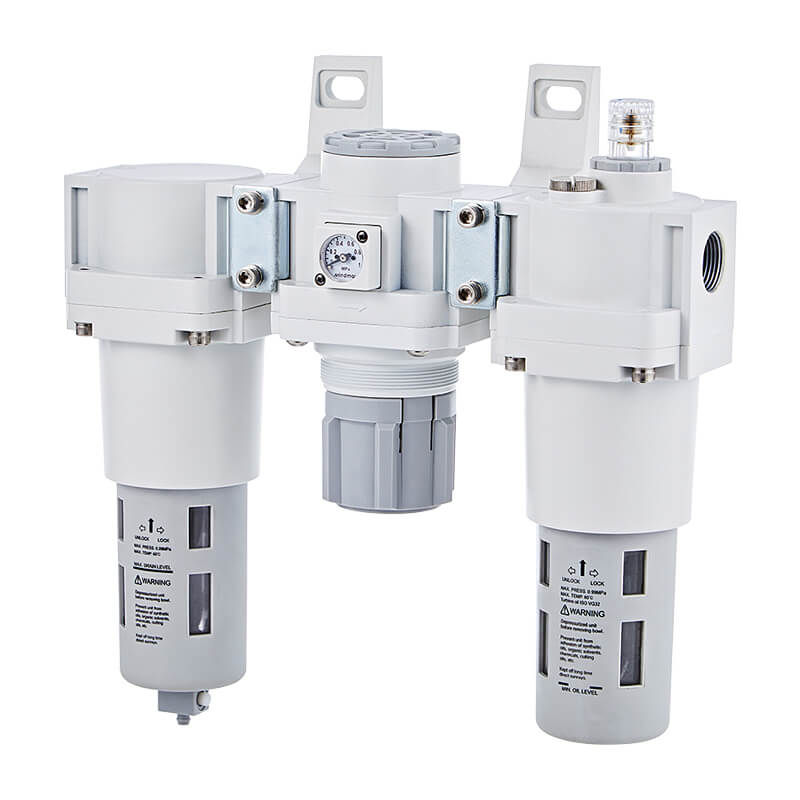

MAF501,MAR501,MAL501 |
| Bore No. |
20A,25A |
| Port size |
3/4, 1 |
| Medium |
Air |
| Operating pressure range |
PC,Nylon bowl: 0.05~1 MPa
Metal bowl: 0.05~1.5 MPa |
| Proof pressure |
PC,Nylon bowl: 1.5 MPa
Metal bowl: 2 MPa |
| Regulated pressure range |
0.05~0.85 MPa |
| Ambient temperature |
－5~＋60℃ (No freezing) |
| Filter element |
40 μm |
| Lubricating oil capacity |
200 c.c |
| Min. flow for oil drip |
25 l/min, 33 l/min |
| Recommended lubricating oil |
Turbine oil ISO-VG32 |
| Attachment |
Pressure gauge (PG-20), T type bracket |
| Weight |
PC,Nylon bowl: 4200g / Metal bowl: 4440g |
| Remark |
※1.Standard unit contains semi-auto-drain function when
operating pressure below 0.05 MPa.
※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa. |
