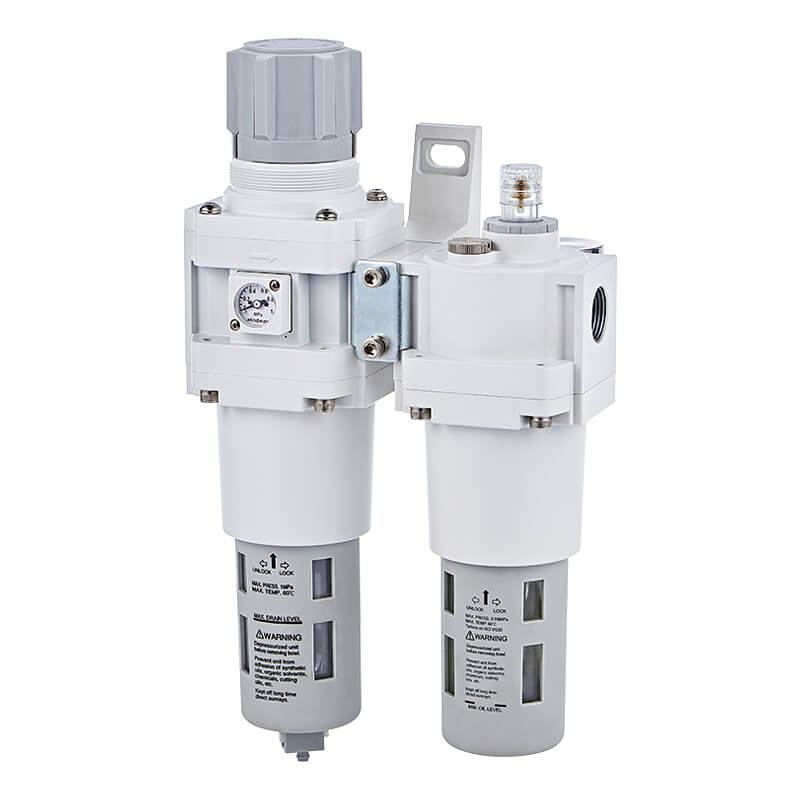

MACP501 series

MACP501 series
Components : MAFR501, MAL501, Port size : 3/4, 1, Operating pressure range : 0.05~1 MPa, Proof pressure : 1.5 MPa, PC, Nylon, Metal bowl.

Specification

Components	MAFR501,MAL501
Bore No.	20A,25A
Port size	3/4, 1
Medium	Air
Operating pressure range (※)	PC,Nylon bowl: 0.05~1 MPa Metal bowl: 0.05~1.5 MPa
Proof pressure	PC,Nylon bowl: 1.5 MPa Metal bowl: 2 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	40 μm
Lubricating oil capacity	200c.c
Min. flow for oil drip	25 l/min, 33 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge (PG-20), T type bracket
Weight	PC,Nylon bowl: 3480g / Metal bowl: 3720g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
